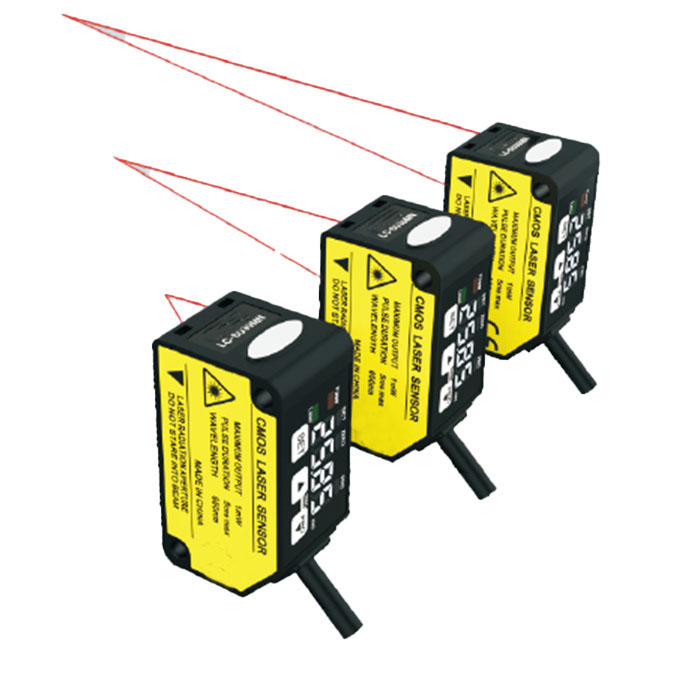

Q31 series Laser distance sensor

Q31 series Laser distance sensor

Senyd High-precision laser distance sensors work according to the principle of angle measurement, whereby color, shape and object surface do not influence the measurement. Depending on the setting, they can be operated at very high speed or resolution. The measuring range can be selected individually within the sensor’s working range.

0.00
0.00
detection distance：


Senyd High-precision laser distance sensors work according to the principle of angle measurement, whereby color, shape and object surface do not influence the measurement. Depending on the setting, they can be operated at very high speed or resolution. The measuring range can be selected individually within the sensor’s working range.

Detection distance 30±5mm，100±35mm，400±200mm

Output signal PNP NO+NC,NPN NO+NC,0-5V,4-20mA

Power supply 24vdc

Repeat precision 10um/100um/400um/800um

Linearity ±0.1%F.S./±0.2%F.S.
